USED MACHINES

Used water jet cutting machines

As a manufacturer of high-quality water jetting systems for industrial use, we also offer a selection of used systems. Ask us for a used waterjet cutting machine – we will make you an offer without obligation!

Gebrauchte WARICUT HWE-P 2030/1-2D AB Compensation head

Year of construction end of 2013 – commissioning at customer’s site in January 2014.

Approx. 5,800 operating hours / checked and updated at RIDDER April/May 2020

Editing Area:
X axis 2050mm, Y axis 3050mm, Z1 axis 2D Z200mm with
AB compensation head (A-axis 12°, B-axis 12°)

Support area:
X-axis 2250mm, Y-axis 3250mm, table support gratings, 800kg/m²

Equipment:
WARICUT control Siemens Sinumerik 840D sl with 19″ screen, HMI IPC new with Windows10, WARICUT expert system. Switch cabinet with air conditioner. Signal light, light barrier.
Complete with height sensor, collision sensor, automatic abrasive agent dosage Macro cutting with 2t silo, pure water cutting head.

37kW Uhde high pressure pump, desludging system, heavy metal filter, CAM software 2020, rotary axis mech. prepared

Optional:
Further accessories possible!
Transport, assembly and training depending on the installation site.

Demonstration machine WARICUT micro-max 2,5D

Year of construction 2020, with approx. 100 operating hours

Machining range: X-axis 650mm, Y-axis 750mm, Z1-axis 200mm, A-axis 12°, B-axis 12°

Support range: X-axis 950mm, Y-axis 950mm
Table support grids, 800kg/m²

Equipment:
The WARICUT micro-max 2.5D is equipped with an AB cutting head. Control Siemens Sinumerik 840Dsl with 24″ touch screen. Complete with positioning laser, collision sensor, pneum. Drill axis, 2 pieces of automatic abrasive dosing (normal and micro cutting!) and two 150kg silos, pure water cutting head. Complete incl. enclosure with lighting and sliding door.

Optional selectable:
High pressure pump, height scanning, hexagon measuring probe, rotary axis, desludging system, CAM software and other accessories available. Transport, assembly and training depending on the installation site.

Foto Waricut Micro Max
Demonstration machine WARICUT micro-max 2,5D

Sold! Used machine WARICUT HWM 6030/2-2D Abrasive cutting system

Year of construction 2002, overhaul and conversion currently in progress, available from approx. Dec. 2019

Editing Area:

X-axis 6.050mm, Y-axis 3.050mm, Z1-axis 300mm, Z2-axis 300mm

Table support grids, 800kg/m²

Equipment:

The WARICUT HWM is equipped with two separately controlled 2D Z axes, each with one abrasive cutting head including automatic abrasive dosing (new), height sensors and collision sensors (new), pure water cutting head new, 1.6t abrasive silo. Control Siemens Sinumerik 840D sl (new), light barrier three-beam (new), desludging plant (new)

Optional freely selectable:

High pressure pump, CAM software and much more…transport, assembly and training depending on the installation site.

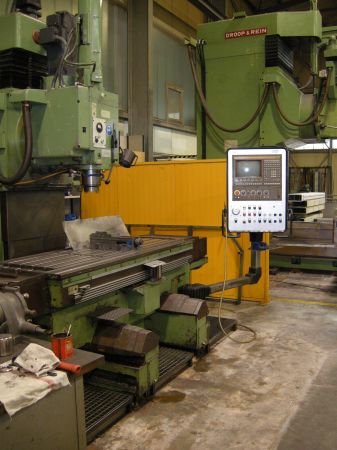

DROOP + REIN vertical CNC milling and drilling machine, type FS100NBW

Year of manufacture 1975

Machining area: see under Technical Data
Support area: see under Technical Data

Scope:

Technical data:

  • Clamping surface table 2.000 x 600 mm
  • Travels X axis 1,600 mm, Y axis 600 mm, Z axis 600 mm
  • Rapid traverse speed 6 m/min.
  • Spindle size 100 mm
  • Quill vertical 150 mm
  • Swivel milling head left / right 30° / 45
  • Spindle head SK50 DIN2079
  • Spindle drive power 15 KW
  • Spindle speed programmable 10 – 1560 rpm
  • Weight approx. 11.000 kg
  • Space requirement (machine) 4.500 x 3.500 mm
  • Total power consumption ~ 40 kVA

Overhaul in 2003:

  • Mechanics/Geometry
  • Axis drives/spindle drive new
  • Hydraulic power unit new
  • New E-Control
  • Siemens CNC control

Control system:

  • Siemens CNC – SINUMERIK 820M

Equipment:

  • Coolant unit
  • 20 tool holders SK50

Note:

  • Machine ready for immediate use
  • Documentation available
  • Good geometrical condition
DROOP + REIN Senkrecht-CNC-Fräs- und Bohrmaschine, Type FS100NBW
DROOP + REIN vertical CNC milling and drilling machine, type FS100NBW

Demonstration machine WARICUT HWE-P 2030/2-3D/2,5D

Year of construction 2018, with approx. 450 operating hours

Editing Area:

X axis 2050mm, Y axis 3050mm, Z1 axis 3D 400/750mm, Z2 axis with

AB head 400mm with A axis 12°, B axis 12°

Support area:

X-axis 2250mm, Y-axis 3250mm, table support gratings, 800kg/m²

Equipment:

The WARICUT HWE-P2030 is equipped with a 3D and a 2.5D AB cutting head. Control Siemens Sinumerik 840D sl with 24″ touch screen.

Complete with positioning laser, height sensors, collision sensors, electric drilling axis 1,4kW at Z1, 2 pieces automatic abrasive dosing Macro cutting with 2t silo, 1 piece automatic abrasive dosing for micro cutting at Z1 3D incl. 150kg silo, pure water cutting head.

Optional selectable:

High pressure pump, hexagon probe, rotary axis, desludging system, 2D 3D CAM software and other accessories available.

Transport, assembly and training depending on the installation site.
