Pure water cutting in 2D and 3D

Reinwasserschneiden in 2D und 3D
Pure water cutting in 2D and 3D

The design of the cutting base is also very important for water jet cutting. Especially for pure water cutting tasks, it is important that as few water jet reflections as possible reach the underside of the material.

Specially for this application case, we have designed a special cutting base which is made of thin, wear-free, stainless steel sheet metal. Thus, it is guaranteed that the water jet does not reflect but is instead distributed on a support plate.

The support has sufficient stability due to the waveform design of individual sheet metal strips combined with straight sheet metal strips.

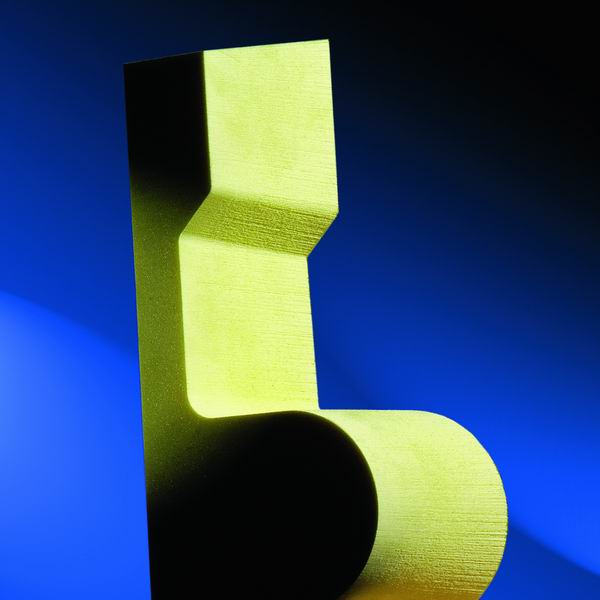

PU-Schaum (Verpackungsmaterial) 3D Zuschnitt
PU foam; (Packaging material); 3D blank

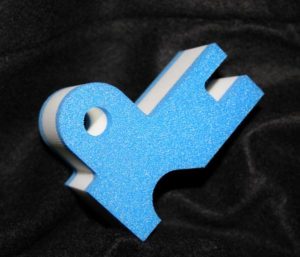

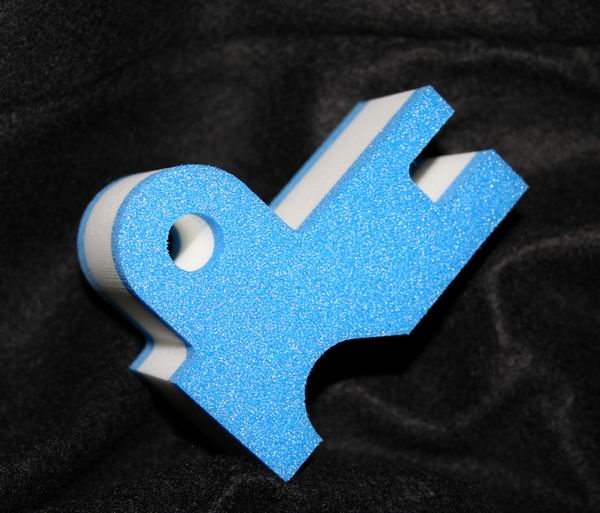

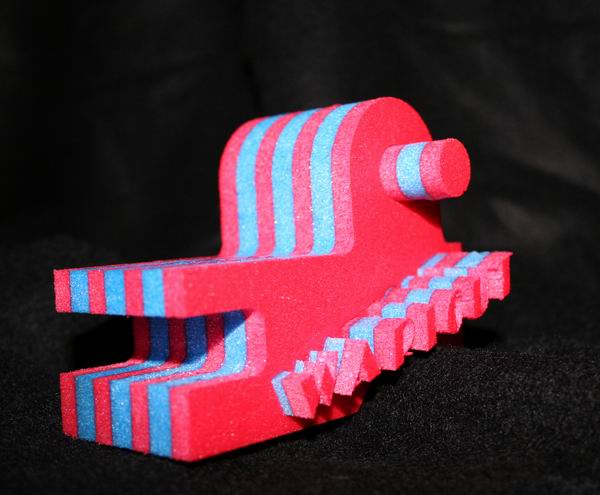

Sandwichmaterial 2D Zuschnitt
Sandwich material; 2D blank

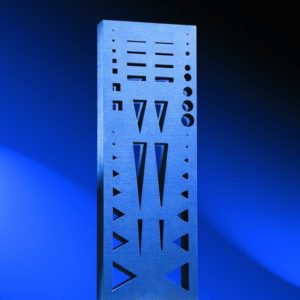

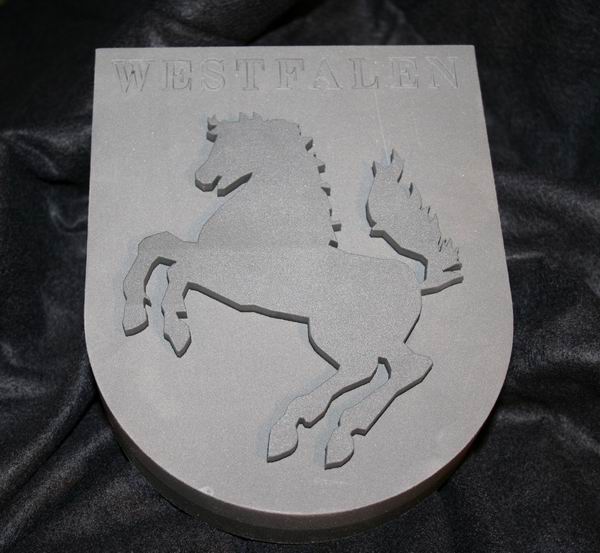

Schaumstoff 2D Zuschnitt
Foam; 2D blank

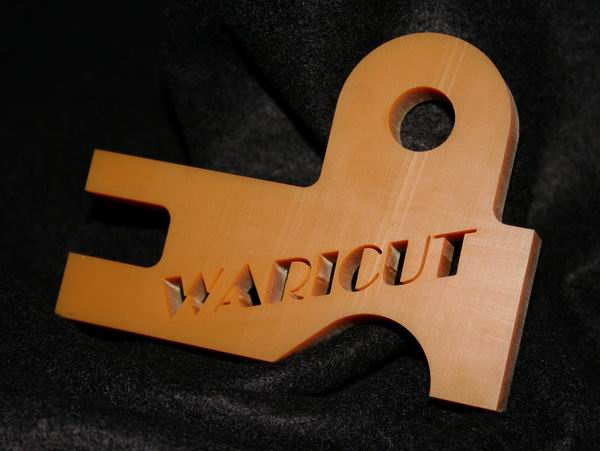

Gummi 2D Zuschnitt
Rubber; 2D blank

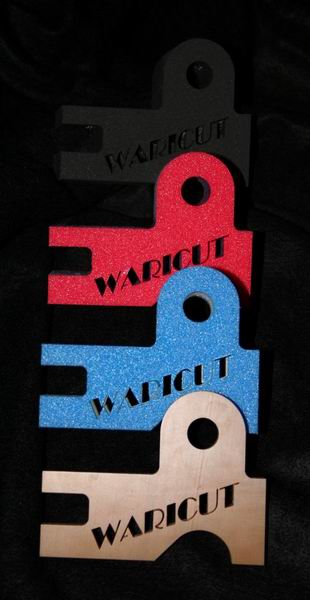

Verschiedene Kunststoffe 2D Zuschnitt
Various plastics
2D Cutting

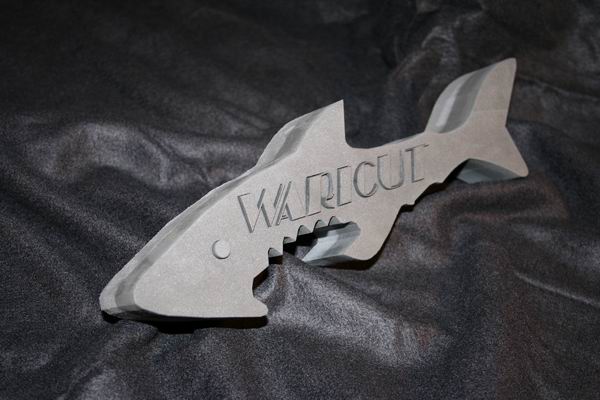

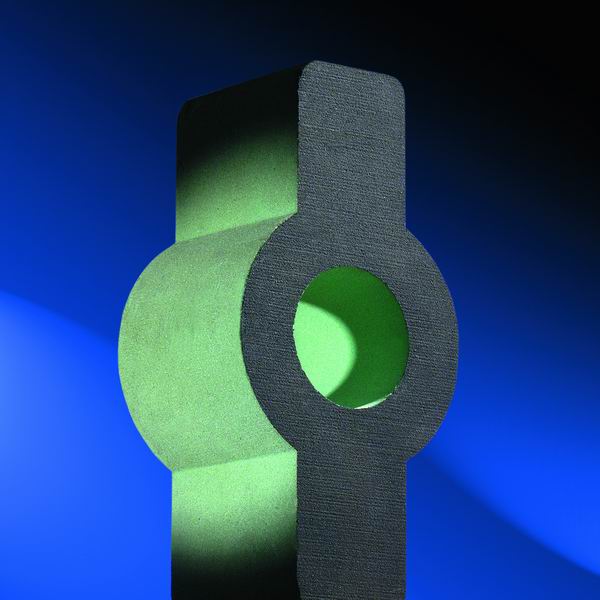

Verbund Schaumstoffe (hohe Festigkeit) 2D Zuschnitt
Composite foam (high strength); 2D blank
Mikrolen 2D Zuschnitt
Mikrolen; 2D blank
Verbund Schaumstoffe (hohe Festigkeit) 2D Zuschnitt
Composite foams (high strength); 2D blank

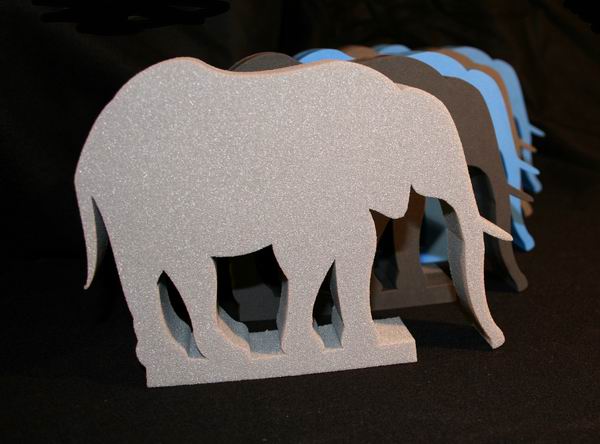

Verschiedene Kunststoffe 2D Zuschnitt
Composite foam (high strength); 2D blank
Mikrolen 2D Zuschnitt
Mikrolen; 2D blank

Materials4000 bar
Plasticsunknown
Foilunknown
Foodstuffsunknown
Rubberup to 80 mm
Textilesup to 30 mm
Leatherup to 30 mm
Woodup to 35 mm
Laminatesup to 35 mm
Foamup to 200 mm
Cardboard / paperup to 60 mm
